MV Reactors
2. Improved Voltage Stability and Power Quality
3. Secure Capacitor Bank Switching and Filtering
4. Increased System Reliability and Availability
5. Motor Starting and Load Management
6. Robust and Mature Technology

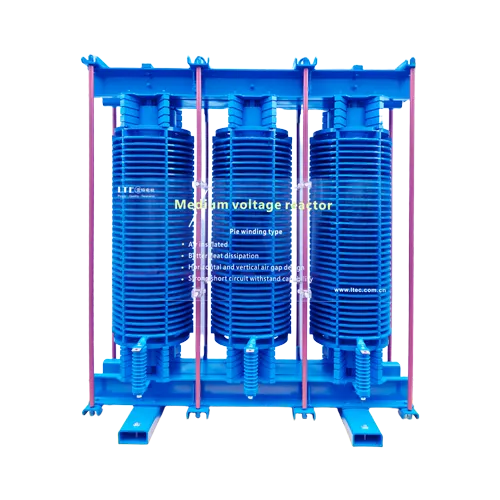

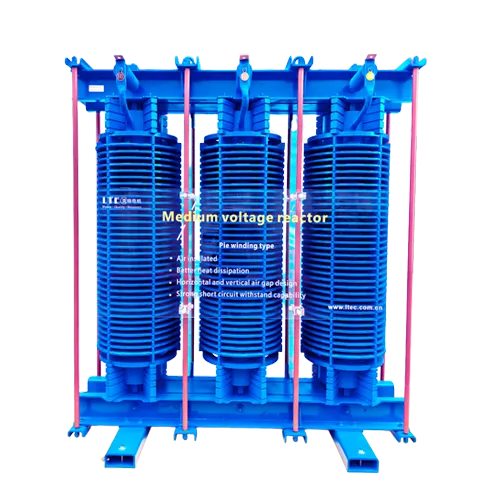

Medium voltage reactors-Pie winding type
Air insulated
Horizontal and vertical air gap design
Strong short circuit withstand capability
Better heat dissipation
Summary of Key Applications and Their Benefits:
| Application | Type of Reactor | Primary Advantage |
|---|---|---|
| Distribution Feeder Protection | Series Reactor | Limits fault current, protects downstream equipment. |
| Long Cable/Line Compensation | Shunt Reactor | Prevents overvoltage, improves voltage stability. |
| Power Factor Correction Banks | Series Reactor | Limits capacitor switching inrush currents. |
| Harmonic Filtering | Tuned Reactor | Reduces harmonic distortion, improves power quality. |
| Large Motor Starting | Series Reactor | Reduces starting current and voltage dips. |
Applications of Medium voltage reactors
Power Distribution Networks: Manage load flow and fault levels.
Renewable Energy Systems: Stabilize grid connections for wind/solar farms.
Industrial Plants: Protect motors, transformers, and capacitors.
Railway Electrification: Ensure a stable traction power supply.
Medium voltage reactors Technical Specifications
|
Pie winding type |
Layer winding type |
|
Air insulated Horizontal and vertical air gap design |
Non-Epoxy Resin (Polymer) Vacuum Pressure Impregnating |
|
Strong short-circuit withstand capability |
Two insulation classes H (180℃) & R (220℃) |
|
Better heat dissipation |
Low noise |
Why Choose LTEC's Medium Voltage Reactors?
LTEC – Powering Your Systems with Innovation!
Proven Reliability
Engineered with precision for stable, long-term performance in critical power applications.
Optimized Efficiency
Advanced design minimizes losses, reducing energy waste and operational costs.
Space-Smart Solutions
Compact construction allows easy installation even in space-constrained environments.
Maintenance-Friendly
Durable components and simple architecture ensure hassle-free operation with minimal downtime.
Tailored to Your Needs
Customizable specifications (voltage, current, cooling) for seamless system integration.
Versatile Applications
Trusted in power transmission, renewable energy, industrial plants, and smart grid systems worldwide.
