Medium Voltage Capacitor

Medium Voltage Capacitor
Product Introduction:
All-Polypropylene Film
Self-Healing Technology
Ultra-Low Loss (<0.1W/kVAr)
Rated 2.4kV - 12kV
Stainless Steel Casing
Send Inquiry
Description
Technical Parameters
Medium Voltage Capacitor
The LTEC Medium Voltage Capacitor stabilizes grid voltage and improves power factor in 2.4kV to 12kV systems.
We use all-polypropylene (APP) film with synthetic oil impregnation to ensure durability and low dielectric losses (<0.1W/kVAr). This design delivers a service life exceeding 150,000 hours.
The casing is made from corrosion-resistant stainless steel or low-carbon steel, rated for harsh UV exposure and extreme weather. Units are modular and stackable, allowing you to configure the exact kVAr capacity needed for heavy industrial or renewable energy applications.
Product Feature

Reactive Power Compensation

Reduces reactive power losses to free up capacity in transformers and transmission lines.

All-Polypropylene (APP) Dielectric

Uses APP film with synthetic oil impregnation to maintain dielectric losses below 0.1W/kVAr.

150,000+ Hour Lifespan

Engineered for high thermal stability to ensure long-term operational reliability

Corrosion-Resistant Casing

Constructed from stainless steel or coated low-carbon steel to withstand UV exposure and harsh industrial environments.



Products Specification



ParameterSpecification
Rated Voltage2.4kV - 12kV AC
Rated Frequency50Hz / 60Hz
Rated Capacity50 - 500 kVAr
Dielectric Loss< 0.1 W/kVAr
Expected Lifetime> 100,000 Hours (Under-rated conditions)
Filler MaterialPUR (Polyurethane), solid dry materials (Non-PCB, eco-friendly)
Cooling MethodNatural air cooling (Convection)
Operating Temperature-25°C to +50°C
Altitude≤ 1000m a.s.l. (Up to 5000m available upon request)
Protection LevelIP00 (Indoor installation)
Standards ComplianceIEC 60871 / IEEE 18
Q: Can these capacitors handle harmonic distortion? A: Yes. While standard units handle fundamental frequencies, our design supports low-resistance paths for harmonic currents. For heavy harmonic environments, we recommend pairing them with detuning reactors. Q: What happens if the capacitor overheats? A: The unit is designed with high thermal stability. It operates safely up to 50°C ambient temperature. If internal faults occur, the self-healing metallized film isolates the issue immediately. Q: Do you offer custom voltage ratings? A: Absolutely. Our factory supports OEM/ODM. We can adjust the kVAr and voltage (up to 12kV) to match your specific grid requirements.
High Voltage Capacitors Installed in Three Phase Power Cabinet
High Voltage Shunt Capacitor Units in Factory Warehouse
High Voltage Shunt Capacitor Units in Factory Warehouse

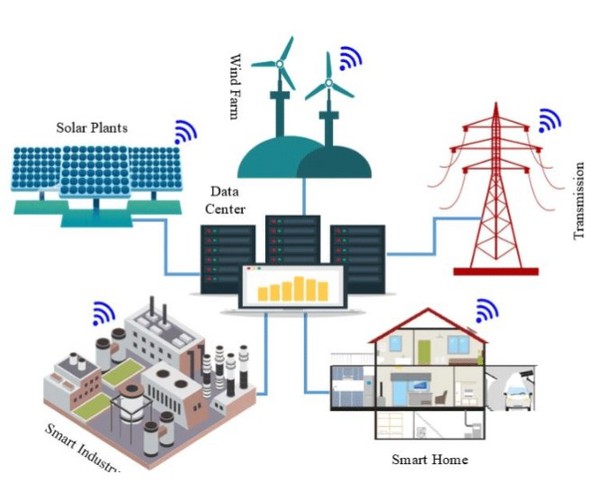

Applications of Medium voltage capacitors

Power Grid Compensation & Stability
Power Systems & Grid Safety
Heavy Industrial Power Quality
Industrial Power Quality Optimization
Renewable Energy Integration
Renewable Energy Systems
Aerospace & Satellites
Aerospace & Satellites
  • Power Grid Compensation & Stability
    Deployed in substations and distribution networks to correct power factor, reduce line losses, and stabilize voltage levels. Essential for maintaining grid compliance and avoiding utility penalties.
  • Heavy Industrial Power Quality
    Ideal for harsh industrial environments including steel mills, mining operations, and chemical plants. Effectively filters harmonics generated by large variable frequency drives (VFDs) and arc furnaces, protecting sensitive equipment from interference.
  • Renewable Energy Integration
    Specifically designed for wind farms and solar power stations. Handles the fluctuating reactive power demands of renewable sources, ensuring smooth grid connection and maximizing energy transmission efficiency.
  • High-Voltage DC Transmission Support
    Suitable for HVDC converter stations where high reliability and low dielectric loss are critical. Provides necessary reactive power support for long-distance power transmission systems.
Factory Stock of High Voltage Power Capacitors
Why Choose Us
Ready-to-Ship Inventory
We maintain a large factory stock of standard medium voltage capacitors to ensure fast delivery for urgent projects.
Tailored Manufacturing
Beyond standard models, LTEC provides flexible customization for specific grid requirements. We can tailor voltage ranges (2.4kV–12kV), kVAr capacities, and physical form factors to perfectly match your system design.



FAQ



Q: Can these capacitors handle harmonic distortion?

A: Yes. While standard units handle fundamental frequencies, our design supports low-resistance paths for harmonic currents. For heavy harmonic environments, we recommend pairing them with detuning reactors.

Q: What happens if the capacitor overheats?

A: The unit is designed with high thermal stability. It operates safely up to 50°C ambient temperature. If internal faults occur, the self-healing metallized film isolates the issue immediately.

Q: Do you offer custom voltage ratings?

A: Absolutely. Our factory supports OEM/ODM. We can adjust the kVAr and voltage (up to 12kV) to match your specific grid requirements.
